Addition Cured Electronic Potting Compounds Silicone

1. Features

-Great fluidity

-Platinum based, environmental friendly, odorless and nontoxic

-Mixing ration: 1:1 and 10:1 are available

-Perfect adhesion

-Electrically isolative

-Optically clear

-Resistant to radiation and abrasion

-Heat-conducting

-Inherent flame resistance

-High resistance to high temperature and aging (resist -60℃ to 250℃)

2. Applications

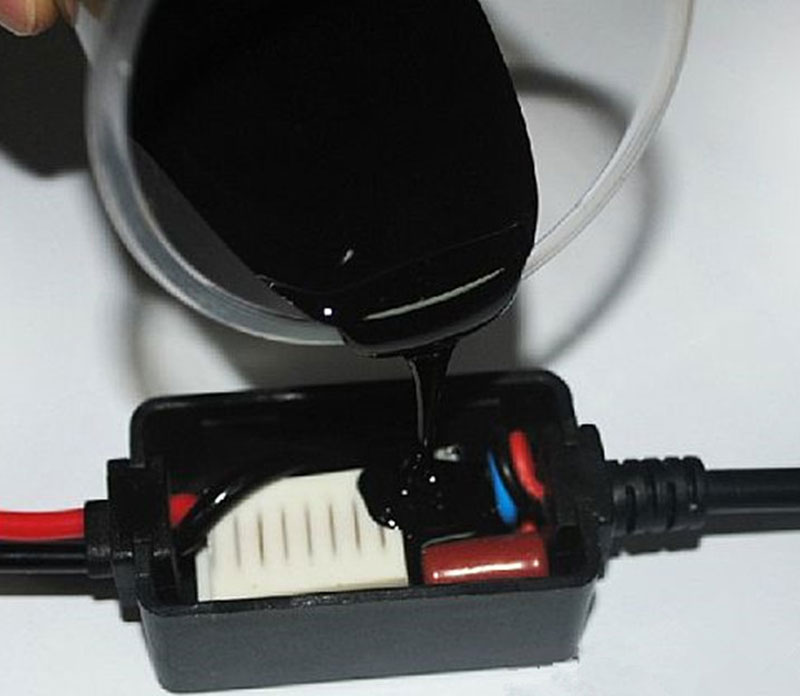

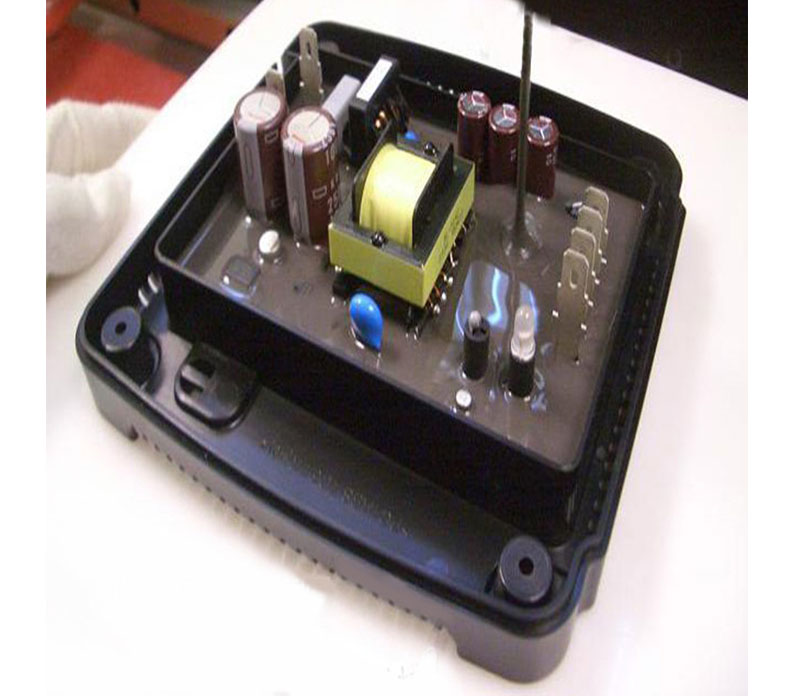

GC Addition Cured Electronic Potting Compounds Silicone G-89 series is great for electronic components, power module and control module,LED screen, Wind Power Generator, PCB substrate, etc

3.Appearance:

Part A: a non-toxic and odorless liquid in transparent color with platinum inside.

Part B: a non-toxic and odorless liquid in transparent color.

ATT: We can do any curing time and gery or white colour as you requirements.

4. Using instruction

1.Put part A and part B in separate container with equal dosage and stir evenly when mixing the two parts together.

2. Put the mixture into the vacuum machine under 0.08 MPa for 5 minutes.

3. The temperature influences the curing time of electronic potting silicone rubber. When in too low temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization.

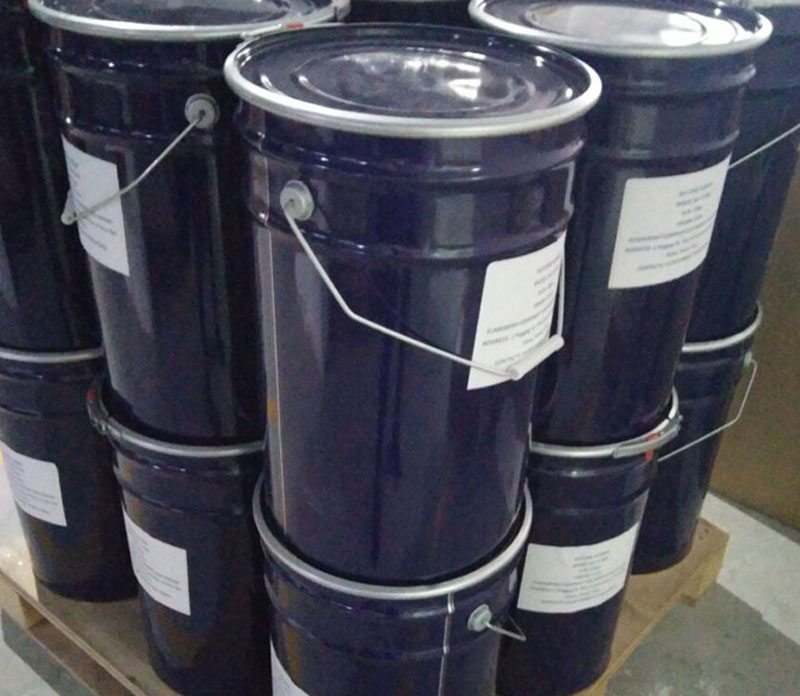

5. Package

Part A:1kg/drum; 5kg/drum; 20kg/drum;25kg/drum;200kg/drum.

Part B:1kg/drum; 5kg/drum; 20kg/drum;25kg/drum;200kg/drum.

6. Storage and shelf life

When stored in their original unopened packaging, at a temperature of between -10°C and +30°C, the RTV G-89 series can be stored for 12 months from the date of manufacture clearly marked on the packaging. Beyond this date, GC Silicone no longer guarantees that the products meet the sales specifications.
